4S/4U/VGA/LCD/LVDS/GLAN/LAN/LPT/Audio/16GPIO/SATA/CF(optional)

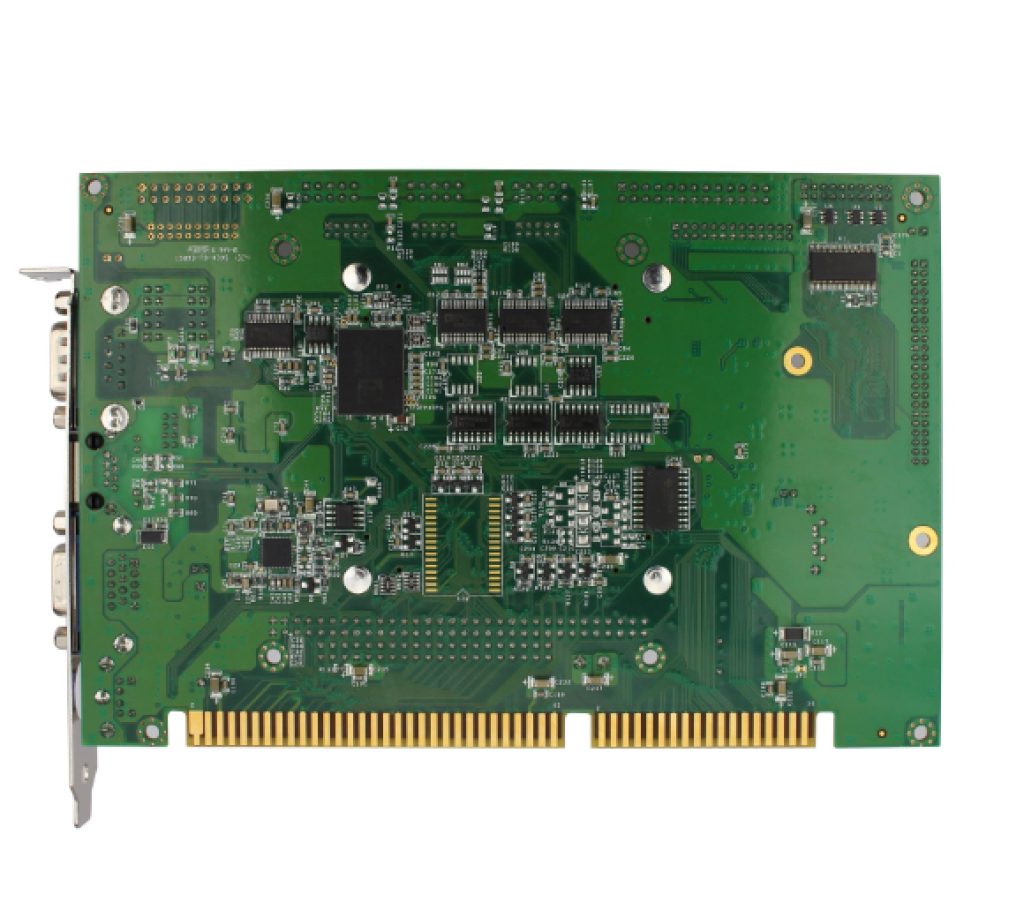

VDX3-6724是符合ISA标准的低功耗CPU模块。它利用了Vortex86DX3 1GHz x86 CPU的优势，它集成了SATA、I2C、VGA、LVDS、PS/2、USB、高清音频，甚至16位ISA总线支持。
VDX3-6724被设计为一个插件替代品，具有向后兼容性，以支持传统软件，帮助延长现有的产品生命周期，而无需进行大量的重新设计。
Mail: 355362461@qq.com TEL&WeChat：13325255760
产品规格
- DM&P SoC Vortex86DX3 – 1GHz
- 4S/4U/VGA/LCD/LVDS/GLAN/LAN/LPT/Audio/16GPIO/SATA/CF(optional)
- 1GB / 2GB DDR3 onboard
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- PC/104 Connector Onboard
- Optional: CF socket / Touch Controller / CH375 DOS USB Hot Swap
| 处理器 | DM&P SoC CPU Vortex86DX3 – 1GHz L1:32K I-Cache, 32K D-Cache L2 Cache:512KB | ||
| RAM | 1GB/2GB DDR3 Onboard | ||
| BIOS | AMI BIOS | ||
| 总线 | PC/104 Standard Compliant | ||
| 显示器 | Integrated 2D VGA chip with dual display support (VGA + TTL /VGA + LVDS) VGA: Maximum resolution up to 1920×1080 @ 60Hz LVDS: Maximum resolution up to 1024×768 @ 60Hz Single-channel 24-bit LVDS | ||
| 网路 | Integrated 10/100Mbps Ethernet x1 Realtek 8111H GbE x1 | ||
| Disk Support | SATA DOM Compact Flash (Optional) | Onboard eMMC 1GB (Optional) | |
| I/O接口 | RS232 x4 USB (ver. 2.0) x4 Parallel x1 HD Audio | 16-bit GPIO x1 PS/2 touch controller x1 (Optional) DOS hot SWAP x1 (Optional) | |
| 端口 | 2.54mm 26-pin box header for Parallel x1 2.54mm 20-pin box header for GPIO x1 2.54mm 10-pin box header for USB x2 2.54mm 10-pin box header for RS232 x3 2.54mm 2-pin pin header for Reset x1 2.54mm 104-pin PC/104 connector x1 2.0mm 44-pin box header for LCD x1 2.0mm 20-pin pin header for LVDS x1 2.0mm 8-pin pin header for Ethernet x1 1.25mm 4-pin wafer connector for Line-out/MIC-in x2 7-pin SATA connector for SATA DOM x1 2-pin box header for DC +5V output x1 15-pin D-Sub female connector for VGA x1 9-pin D-Sub male connector for RS232 x1 Type I/IICompact Flash slot x1 (Optional) Terminal block for DC input x1 PS/2 connector for Keyboard/Mouse x1 RJ45 connector for GbE x1 | ||
| 功率要求 | DC +5V @1000mA (Typical) | ||
| 工作温度 | -20°Cto +70°C(Single Core) -10°Cto +60°C(Dual Core) -40°Cto +85°C (Optional for Single Core) -20°Cto +70°C(Optional for Dual Core) | ||
| 尺寸 | 184 x 122mm | ||
| 重量 | 180g | ||
| 操作系统 | Windows 7 Windows Embedded Compact 7 Windows XP Professional Windows Embedded Standard 7 Windows Embedded 2009 | Linux DOS POS Ready (WePOS) QNX VxWorks Free BSD | |
| 品名 | 说明 | |
| VDX3-6724-V2-1G | Vortex86DX3 Half-Size CPU Module with 1GB DDR3 | |
| VDX3-6724-V2-2G | Vortex86DX3 Half-Size CPU Module with 2GB DDR3 | |
| VDX3-6724-V2-2C-1G | Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3 | |
| VDX3-6724-V2-2C-2G | Vortex86DX3 Half-Size Dual Core CPU Module with 2GB DDR3 | |
| VDX3-6724-V2-CF-1G | Vortex86DX3 Half-Size CPU Module with 1GB DDR3 with CF card slot | |
| VDX3-6724-V2-2C-CF-1G | Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3 with CF card slot | |
| VDX3-6724-V2-CF-2G | Vortex86DX3 Half-Size CPU Module with 2GB DDR3 with CF card slot | |
| VDX3-6724-V2-2C-CF-2G | Vortex86DX3 Half-Size Dual Core CPU Module with 2GB DDR3 with CF card slot | |
| CABLE-6724-SET | GPIO (2.54) x1 RS-232 (2.54) x3 Audio Line x2 | Printer (2.54) x1 USB (2.54) x2 NET 4×2 (2.0) x1 |
| CABLE-6724-CF | RS-232 (2.54) x3 Audio Line x2 | USB (2.54) x2 NET 4×2 (2.0) x1 |
| ICOP-0096 | Vortex86 LVDS 18-bit Converter Kit for LCD Panel Display | |
| CABLE-LVDS-30 | 18-Bit LVDS Cable | |
