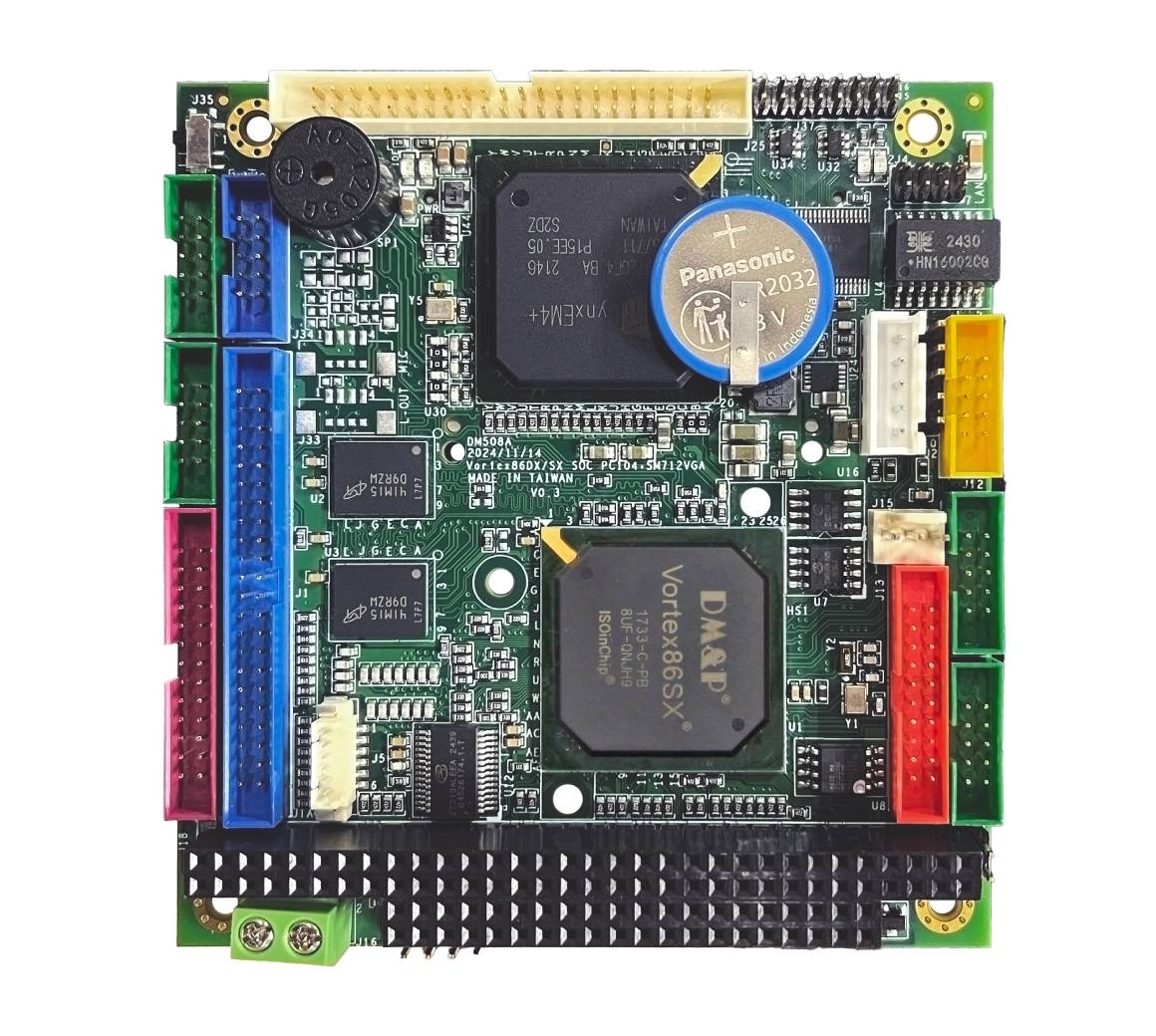

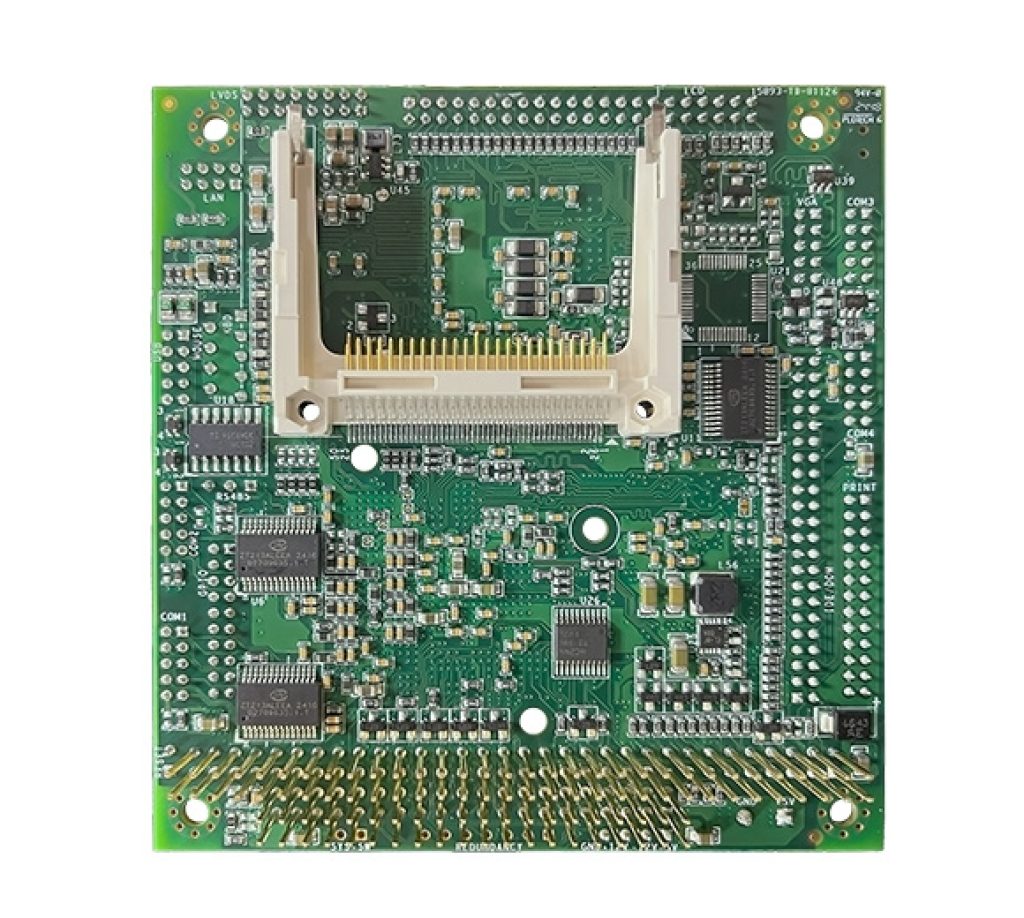

DM&P SoC Vortex86SX- 300MHz VSX-6153-V3 Mail: 355362461@qq.com TEL&WeChat：13325255760
4S/2U/VGA/LCD/LVDS/LAN/LPT/SPI/16GPIO/CF/IDE
产品规格
- DM&P SoC Vortex86SX- 300MHz
- 128MB / 256MB DDR2 onboard
- 4S/2U/VGA/LCD/LVDS/LAN/LPT/SPI/16GPIO/CF/IDE
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 2MB SPI Flash Disk
- Optional: USB Audio Controller
The VSX-6153-V3 family of low-power x86 embedded controller is designed to meet PC/104 specifications and integrated with the following features.
The VSX-6153-V3 PC/104 family of embedded controllers are designed with backward compatibility in mind to provide a migration path for projects facing end-of-life challenges with their existing x86 based PC/104 controller. The VSX-6153-V3 family of controllers is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend the existing product life cycle without heavy re-engineering.
VSX-6153-V3 is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, machinery control, And more…application that required small footprint, low-power and low-cost hardware with an open industry standard such as PC/104.
| Part Number | Description |
| VSX-6153-V3 | Vortex86SX PC/104 CPU Module with 256MB DDR2 |
| VSX-6153S-V3 | Vortex86SX PC/104 CPU Module with 256MB DDR2 |
| CPU | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache |
| BIOS | AMI BIOS |
| Bus Interface | PC/104 Standard Compliant |
| System Memory | 256MB DDR2 Onboard |
| Watchdog Timer | Software programmable from 30.5 us to 512 seconds x2 sets (Watchdog 1 fully compatible with M6117D) |
| VGA | XGI Volari Z9s Chipset VGA and TFT Flat Panel Interface Support LVDS Flat Panel Interface Support Onboard 32MB VGA Memory Support resolution up to 1280 x 1024,16MB colors |
| LAN | Integrated 10/100M Ethernet |
| AUDIO | CM119 USB Audio controller (Optional) |
| I /O Interface | Enhanced IDE port x1 RS-232 port x3 RS-232/422/485 port x1 (RS485: Auto Direction) Parallel port x1 USB port x2 (USB 2.0 version) 16-bit GPIO port x1 10/100Mbps Ethernet port x1 |
| Connectors | 2.54mm 4-pin pin header for +12V, -12V, -5V, GND x1 2.54mm 2-pin pin header for Reset x1 2.54mm 3-pin pin header for RS485 x1 2.54mm 104-pin PC/104 connector x1 2.54mm 5-pin header for Keyboard x1 2.54mm 5-pin header for Mouse x1 2.0mm 16-pin pin header for LVDS x1 2.0mm 44-pin box header for IDE x1 2.0mm 44-pin box header for LCD x1 2.0mm 26-pin box header for Parallel x1 2.0mm 20-pin box header for 16-bit GPIO x1 2.0mm 10-pin box header for RS232 x4 2.0mm 10-pin box header for USB x1 2.0mm 10-pin box header for VGA x1 2.0mm 8-pin header for Ethernet x1 Type I/II Compact Flash Slot x1 |
| Flash Disk Support | Onboard 2MB SPI Flash Disk (Driver: A) 44-pin IDE Flash Disk( EmbedDisk 16MB or above) Compact Flash Type I/II |
| PWM | 16~24 channels |
| Power Requirement | DC +5V @ 700mA |
| Dimension | 90 X 96mm (3.54 x 3.77 inches) |
| Weight | 90g |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
