产品规格
- 4GB~8GB
- SLC type
- Industrial Grade
- Operation Temperature: -40 ~ +85°C
Specifications
IDE Transfer Mode PIO Mode 0-4 / MwDMA Mode 0~2/ Ultra DMA Mode 0~4
Drive Config. Switch Master/Slave
Data Transfer Rate Read 40 Mbytes(Max)/sec
Write 28 Mbytes(Max)/sec
Bus Interface ATA Compatibility
Flash Type SLC
Connector 44pin IDE/ATA ANSI Standards
Storage Capacity 512MB ~ 8GB(Vertical up to 4GB)
Drive Number Drive 0 or 1
Operation Temp. ℃ ℃-40 ~+85
Storage Temp. ℃ ℃-55 ~+95
Humidity 10%~95% non-condensing
Vibration 20G (7~2000Hz)
Shock 50G/10ms
ECC Technology High Reliability based on the internal ECC function
MTBF >3,000,000 hours
Wear-leveling Support
Data Integrity 10 years
DC Input Voltage +3.3V / +5V single power supply operation
Power Mode Auto Stand-by and sleep mode
Power Consumption 125mA (max.)
Dimension 48 x 32.6 mm (W*L)
Ordering Information
PART NO. Capacities Type Operation Temp.

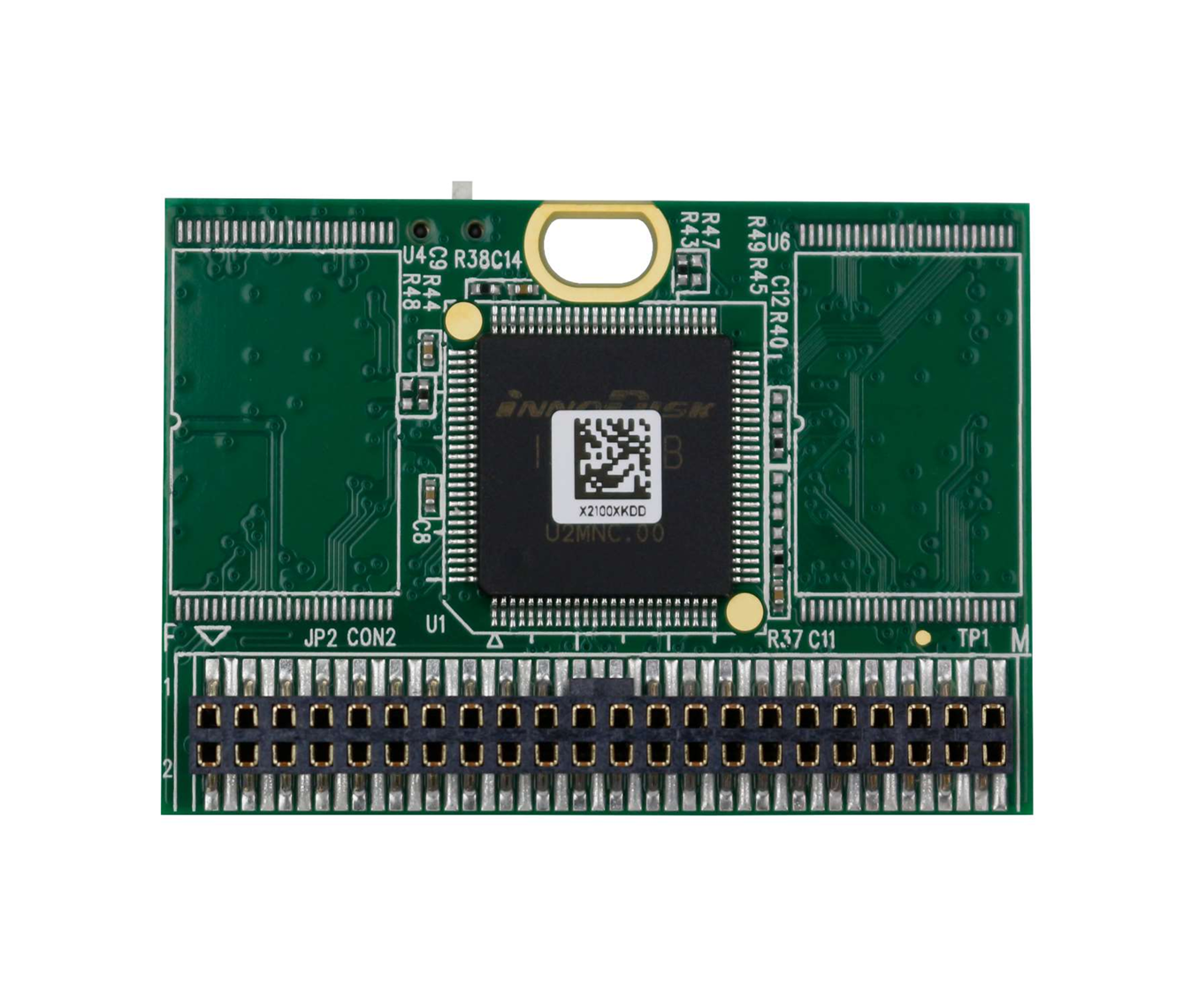

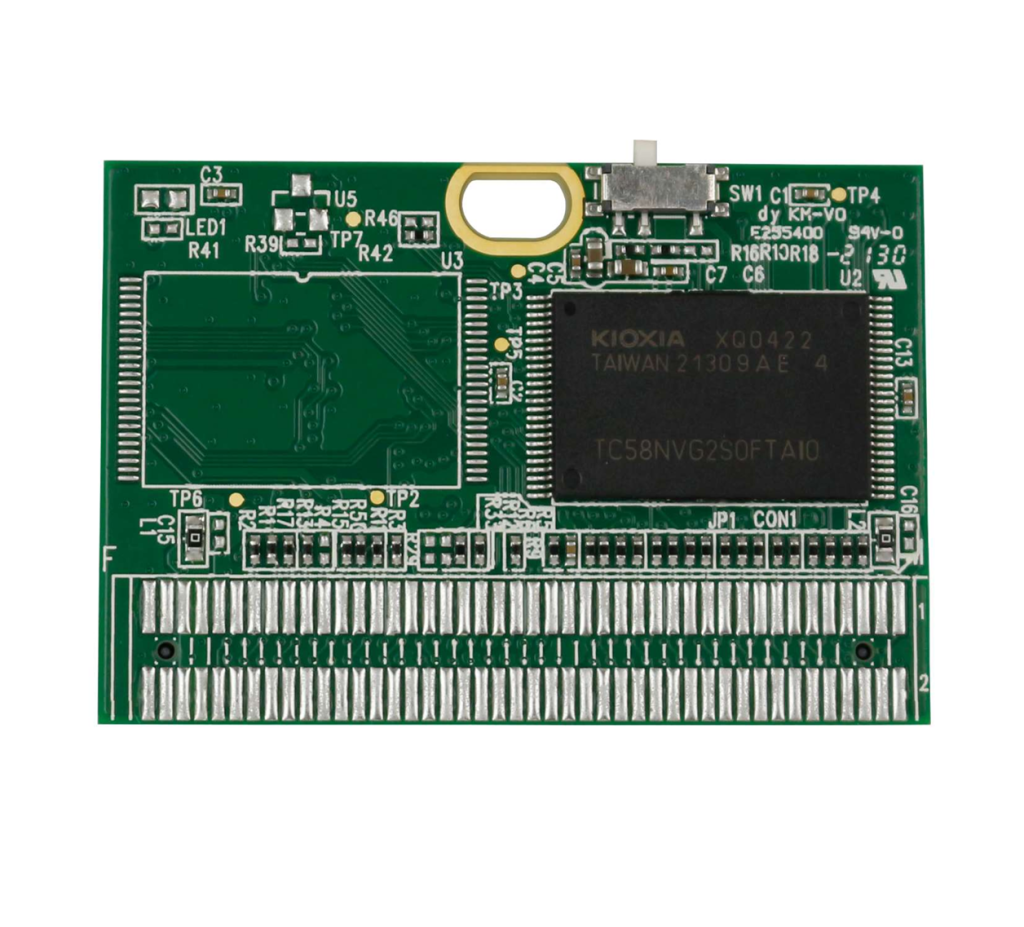

IDM-512M-44P-HL-X 512MB Horizontal Right ℃ ℃-40 ~+85
IDM-512M-44P-H-X 512MB Horizontal Left ℃ ℃-40 ~+85
IDM-512M-44P-V-X 512MB Vertical ℃ ℃-40 ~+85
IDM-XG-44P-HL-X 1~8GB Horizontal Right ℃ ℃-40 ~+85
IDM-XG44P-H-X 1~8GB Horizontal Left ℃ ℃-40 ~+85
IDM-XG-44P-V-X 1~4GB Vertical ℃ ℃-40 ~+85
