产品规格
- DM&P SoC Vortex86DX2- 800MHz
- 512MB / 1GB DDR2 onboard
- 4S/4U/VGA/LCD/LVDS/2GLAN/LAN/PWM/Audio/16GPIO
- Operation Temperature: -10 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 4MB SPI Flash Disk
- PC/104 Connector Onboard

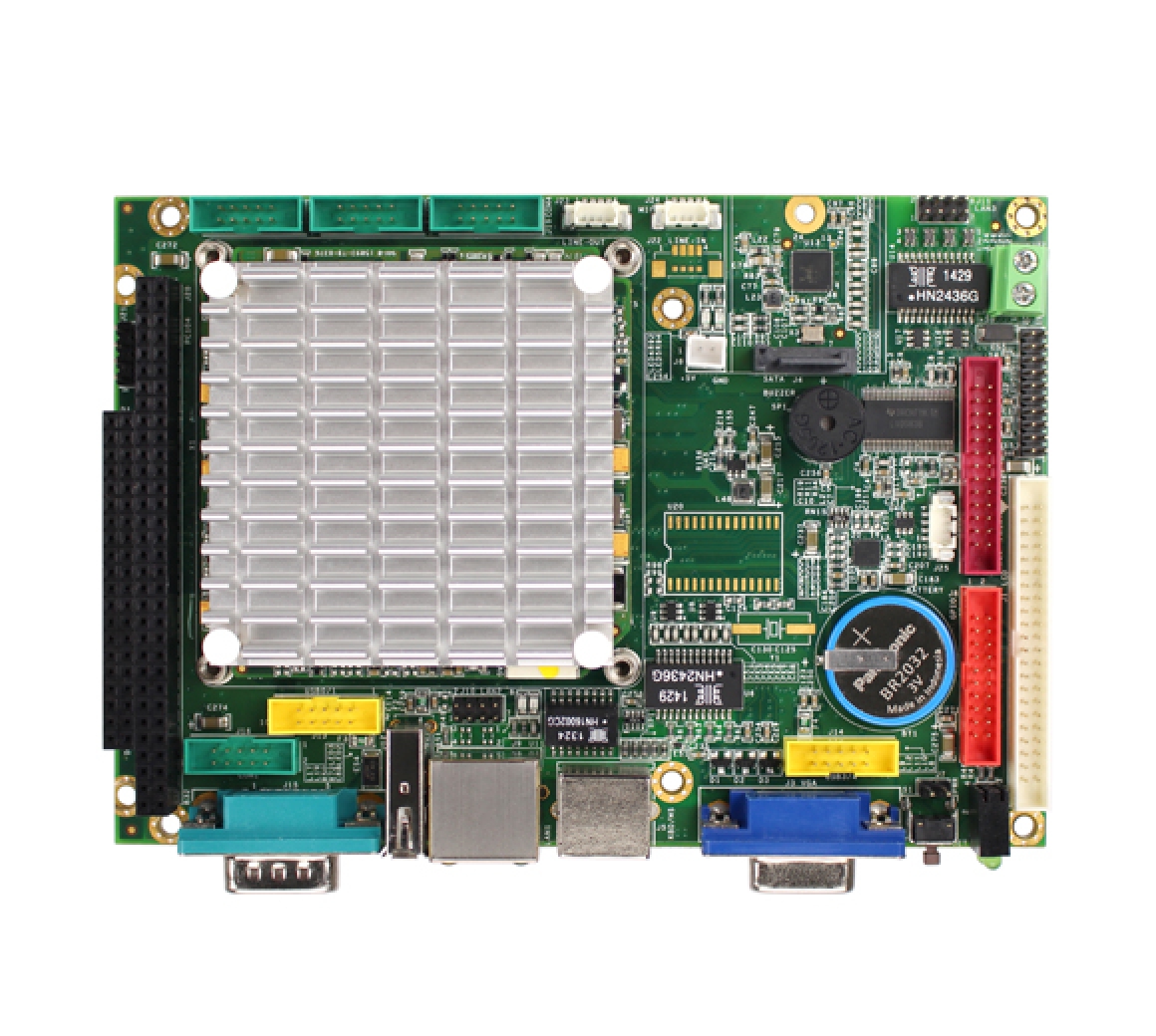

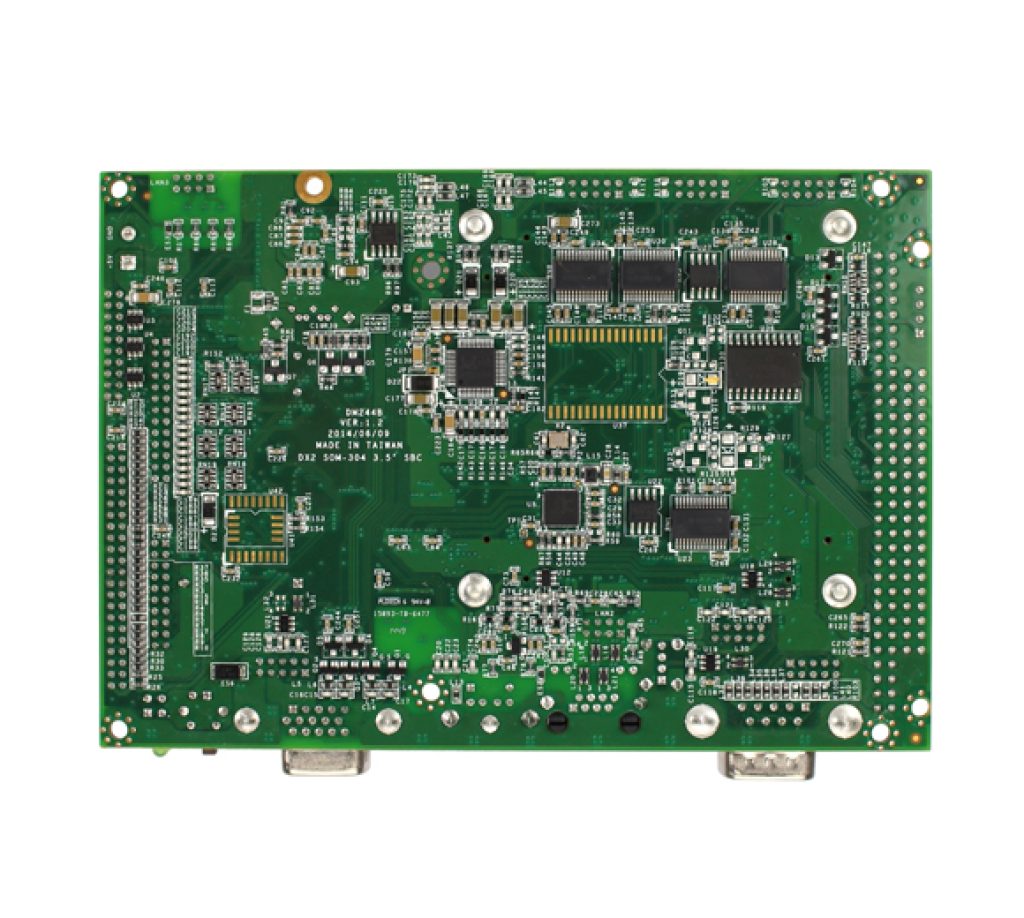

VDX2-6526系列低功耗x86嵌入式控制器的设计符合3.5英寸规格，并集成了以下功能。
VDX2-6526 3.5“嵌入式控制器系列的设计考虑到了向后兼容性，以便为面临使用现有基于x86的3.5”控制器的寿命终止挑战的项目提供迁移路径。VDX2-6526系列控制器设计为插件替代品，具有向后兼容性，以支持传统软件，从而延长现有产品的生命周期，而无需进行大量的重新设计。
VDX2-6526适用于广泛的数据采集、工业自动化、过程控制、汽车控制器、AVL、智能车辆管理设备、医疗器械、人机界面、机器人、机械控制等。
| Doc. # | Subject | Date | |
|---|---|---|---|
| VDX2-6526-V2_UM_v1r4A | VDX2-6526-V2 Manual | Manual | 2022-08-30 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| 6526_Datasheet | VDX2-6526-V2 Datasheet | Datasheet | 2022-08-30 |
| 品名 | 说明 |
| VDX2-6526-V2-512 | Vortex86DX2 CPU Module with 512MMB DDR2 |
| VDX2-6526-V2-1G | Vortex86DX2 CPU Module with 1GB DDR2 |
| VDX2-6526-V2-512-T | Vortex86DX2 CPU Module with 512MB DDR2 and Touchscreen support |
| VDX2-6526-V2-1G-T | Vortex86DX2 CPU Module with 1GB DDR2 and Touchscreen support |
| 处理器 | DM&P SoC CPU Vortex86DX2- 800MHz Real-Time Clock with Lithium Battery Backup |
| 缓存 | L1:16K I-Cache, 16K D-Cache L2:256KB Cache |
| BIOS | AMI BIOS |
| 总线 | PC/104 Standard Compliant |
| 系统存储器 | 512MB/ 1 GB DDR2 Onboard |
| 看门狗定时器 | Software programmable from 30.5 us to 512 seconds x2 sets (Watchdog 1 fully compatible with M6117D) |
| VGA | Integrated 2D VGA chip with dual display support (VGA + TTL / VGA + LVDS) VGA: Maximum resolution up to 1280×1024 @ 60Hz LVDS: Maximum resolution up to 1024×768 @ 60Hz Single-channel 24-bit LVDS |
| 网路 | Integrated 10/100M Ethernet x1 Realtek 8111H 10/100/1000Mbps Ethernet x2 |
| 音频 | ALC888S (HD Audio) |
| 触摸控制器 | PS/2 interface (Optional) |
| I/O接口 | SATA 7P Connector x 1 RS-232/485 port x4 Parallel port x1 USB port x4 (USB 2.0 version) *DOS USB hot SWAP x 1 (Optional) 16-bit GPIO port x1 10/100Mbps Ethernet port x1 10/100/1000 Mbps Ethernet port x2 |
| 端口 | SATA 7P for SATA x 1 2.00 mm Ø 44-pin box header for LCD x 1 2.00 mm Ø 26-pin box header for Printer x1 2.00 mm Ø 20-pin box header for 16-bit GPIO x1 2.00 mm Ø 20-pin header for LVDS x 1 2.00 mm Ø 10-pin box header for VGA x1 2.00 mm Ø 10-pin box header for USB x2 2.00 mm Ø 10-pin box header for RS-232 x3 2.00 mm Ø 8-pin header for Ethernet x 2 2.54 mm Ø 4-pin header for DC-in x1 2.54 mm Ø 2-pin header for Reset x1 1.25 mm Ø 4-pin Wafer for Line-out/MIC-in x2 1.25 mm Ø 4-pin Wafer for Touch screen x1(Optional) External RJ-45 connector for Ethernet x1 External Mini-DIN connector for KBD/Mouse x1 External D-Sub 15 pin female connector for VGA x1 External D-Sub 9 pin male connector for RS232 x1 |
| 闪存支持 | Onboard 4MB SPI Flash Disk (Driver: A) |
| PWM | 16 channels |
| 功率要求 | Single Voltage +5V @1A |
| 尺寸 | 102 X 146mm (4.01 x 5.75 inches) |
| 重量 | 150g |
| 工作温度 | -10°C ~ +60°C -40°C ~ +85°C (Optional) |
| 操作系统 | Free DOS DOS 6.22 PCDOS 7.1 DR-DOS x-DOS OD/2 CE7.0 Windows XP Professional Windows Embedded Standard (XPE) POS Ready(WePOS) Embedded Linux X-Linux QNX VxWorks and FreeBSD. |
